DAB PE612 Complete Zusammengebauter Pumpenkasten PE 5,13A 230VAC Schwarz

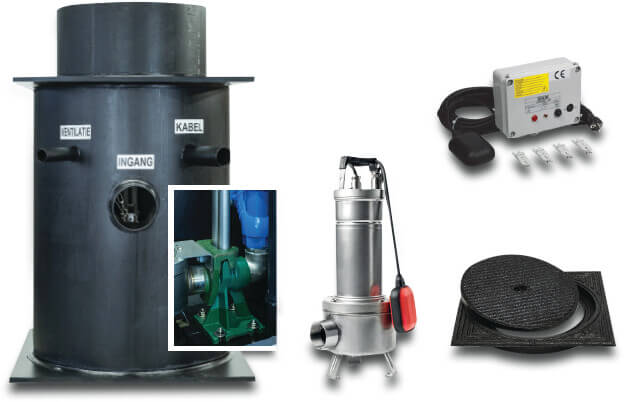

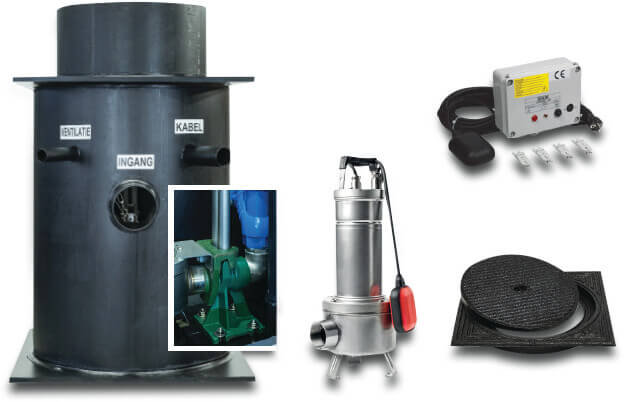

PE pump sump fitted with Feka VS 750 MA stainless steel submersible sewage pump. Ideally suited for wastewater and sewage water with solids not exceeding 50mm.

Fully assembled and equipped with DSD guide system

• PE pump pit ø 600 x 1200 mm
• Flat bottom
• 1x inlet socket ø 125 mm
• 1x outlet ø 63 mm
• 1x cable duct ø 75 mm
• 1x Feka VS 750 MA 230 Volt 50 Hz
• 1x installation set consisting of DSD guide system with beam damper
• 1x cable protection pipe 75 mm, 5 mtr
• 1x cast iron manhole cover Class D (heavy duty)
• 1x concrete ledge 900*900*200 mm
• 1x AS1 flood valve with float switch

Application: For pumping rainwater and/or sewage containing max 50mm solids

Technische Daten

Downloads

• Datenblatt (PDF)
• Datenblatt (PDF)
• Datenblatt (PDF)
