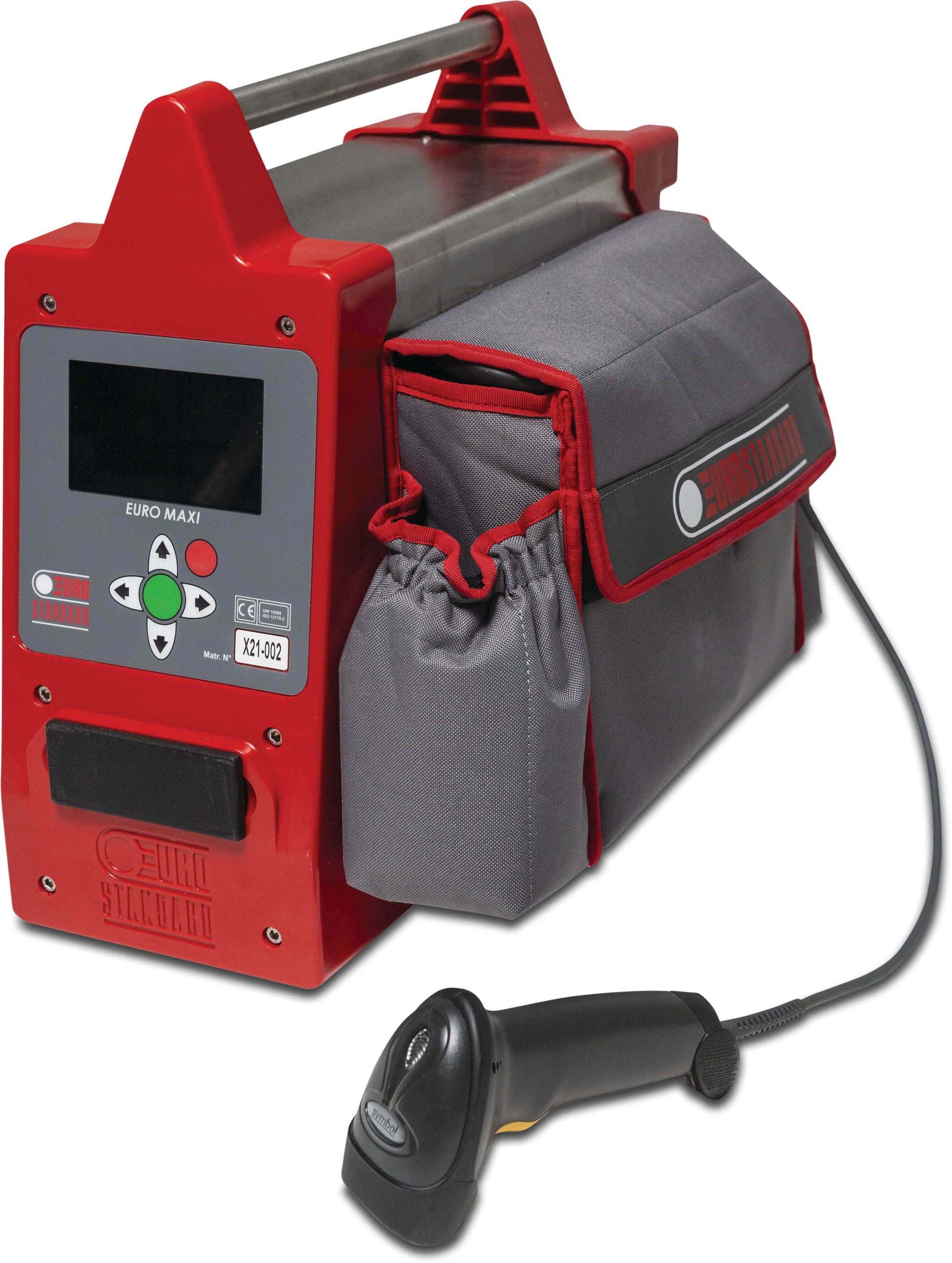

Electrofusion welding unit Euro Maxi incl barcode scanner 110A 230VAC

The Euro Maxi electrofusion welding unit is suitable for the welding of all electrofusion fittings up to diameter 630mm.
Reading of the barcode by means of a scanner or manual entering of the 24 digits shown under the barcode, or manually by setting of the welding voltage and time.
The heating power is automatically adjusted. Automatically (scanner or 24 digits) the heating power is adjusted by the ambient temperature.
A display and the intuitive keyboard guide the operator during all operative phases of the programming, displaying the evolution of ambient temperature, the welding voltage and current, the cycle time, the progressive number of weldings and the possible error or malfunctioning messages.
Supplied with USB connection port (pen drive is included) and serial port for the transfer of the welding data to the PC which afterwards can be used with DBManager Cloud for the management of the printing and storing operations.

Technische Daten

Downloads

• Datenblatt (PDF)
